POWERNET 直流轉換器ADC7480HV 參數
輸入電壓70 ... 264Vac 1相（70 ... 230Vac，功率降低）70 ... 369Vdc
滿載時效率為89％，負載為50％時為90％（230Vac輸入）
輸入電流16A（最大）
外殼鋁外殼，IP20
重量7.1公斤，無電纜
輸出接地浮動
環境溫度范圍0°C ...滿載時+ 40°C， 最大 + 55°C
過熱保護處理器控制開/關
過流保護電流限制
反極性保護帶保險絲

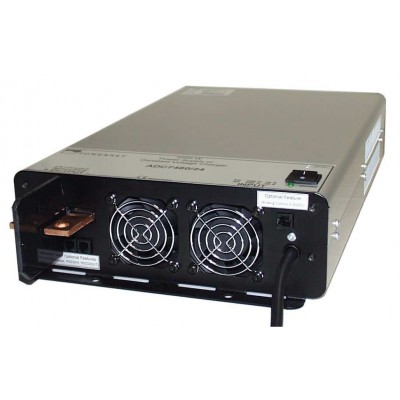

芬蘭Powernet 智能充電器/電源 ADC7480 系列
POWER SUPPLIES AND BATTERY CHARGERS, TRIMMER ADJUSTABLE | |||||||
Type | Input voltage range
**) | Nominal output voltage | Voltage setting range | Nominal output current | Current setting range | Max power **) | Installation / dimensions (Width x Height x Depth, mm) |
ADC7480/12 | 70-264VAC/80-369VDC | 12 VDC | 0-18 VDC | 200 A | 0-200A | 3000W | Wall/Bench 400x250x80 mm |
ADC7480/24 | 70-264VAC/80-369VDC | 24 VDC | 0-36 VDC | 127 A | 0-127A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/36 | 70-264VAC/80-369VDC | 36 VDC | 0-54 VDC | 95 A | 0-95A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/48 | 70-264VAC/80-369VDC | 48 VDC | 0-72 VDC | 64 A | 0-64A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/72 | 70-264VAC/80-369VDC | 72 VDC | 0-108 VDC | 42 A | 0-42A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/110 | 70-264VAC/80-369VDC | 110 VDC | 0-165 VDC | 25 A | 0-25A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/160 | 70-264VAC/80-369VDC | 160 VDC | 0-230 VDC | 20 A | 0-20A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/220 | 70-264VAC/80-369VDC | 220 VDC | 0-320VDC | 14 A | 0-14A | 3200W | Wall/Bench 400x250x80 mm |
ANALOG ConTROLLABLE MODELS BY EXTERNAL 0-5VDC VOLTAGE | |||||||
Type *) | Input voltage range
**) | Nominal output voltage | Voltage setting range | Nominal output current | Current setting Range | Max power **) | Installation / dimensions (Width x Height x Depth, mm) |
ADC7480/12AI | 70-264VAC/80-369VDC | 12 VDC | 0-18 VDC | 200 A | 0-200A | 3000W | Wall/Bench 400x250x80 mm |
ADC7480/24AI | 70-264VAC/80-369VDC | 24 VDC | 0-36 VDC | 127 A | 0-127A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/36AI | 70-264VAC/80-369VDC | 36 VDC | 0-54 VDC | 95 A | 0-95A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/48AI | 70-264VAC/80-369VDC | 48 VDC | 0-72 VDC | 64 A | 0-64A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/72AI | 70-264VAC/80-369VDC | 72 VDC | 0-108 VDC | 42 A | 0-42A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/110AI | 70-264VAC/80-369VDC | 110 VDC | 0-165 VDC | 25 A | 0-25A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/160AI | 70-264VAC/80-369VDC | 160 VDC | 0-230 VDC | 20 A | 0-20A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/220AI | 70-264VAC/80-369VDC | 220 VDC | 0-320VDC | 14 A | 0-14A | 3200W | Wall/Bench 400x250x80 mm |
BATTERY CHARGERS WITH TEMPERATURE COMPENSATION | ||||||
Type
*) | Input voltage range
**) | Output voltage factory setting | Programmed output voltages (see table page 8) | Output current (see table) | Max power **) | Installation / dimensions (Width x Height x Depth, mm) |
ADC7480/12T | 70-264VAC/80-369VDC | 13.7 VDC | 3.3-18 VDC | 200 A | 3000W | Wall/Bench 400x250x80 mm |
ADC7480/24T | 70-264VAC/80-369VDC | 27.4 VDC | 12-28 VDC | 127 A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/36T | 70-264VAC/80-369VDC | 41.4 VDC | 13.7-42 VDC | 95 A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/48T | 70-264VAC/80-369VDC | 54.8 VDC | 13.7-60 VDC | 64 A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/72T | 70-264VAC/80-369VDC | 82.2VDC | 27,4-82,5 VDC | 42 A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/110T | 70-264VAC/80-369VDC | 123.3VDC | 82.2-137 VDC | 25 A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/160T | 70-264VAC/80-369VDC | 137VDC | 82.2-219.2 VDC | 20 A | 3200W | Wall/Bench 400x250x80 mm |
ADC7480/220T | 70-264VAC/80-369VDC | 246.6 VDC | 109.6-287.7 VDC | 14 A | 3200W | Wall/Bench 400x250x80 mm |
*) Cable sets with modular connectors are included in packing: 1.5m cable set for analog control and 2.5m for or temp.comp models
**) Reduced power 80…230VAC/VDC, see curves at next page
If voltage version is more than 36V charger output is not SELV (Safety Extra Low Voltage) circuit.
MODELS WITH POWER FAIL RELAY ALARM (24V models as a type number example) | ||
Type | Option description | Cable set |
ADC7480/24H | Trimmer adjustable model with power fail relay alarm | 1.5 m, modular connector |
ADC7480/24AIH | Analog controllable model with power fail relay alarm | Analog + relay cables |
ADC7480/24TH | Temp.comp model with Power fail relay alarm | Temp.comp + relay cables |
MASTER-SLAVE ConNECTION (24V models as a type number example) | |
Master units ***) | Slave units |
ADC7480/24 or ADC7480/24AI (optional for ADC7520/24T) Control to slave via serial bus**** | ADC7480/24S serial bus control in and out |
ADC7480/24SH slave unit with relay, serial bus in only | |
Cable set for master slave connection included in slave unit type number, 0.6m modular connectors in both ends | |
***) Master unit or slave with serial bus output can not include the relay alarm
****) TTL level serial bus, need level converter if use with standard RS-232 port
RECTIFIER MODULES, trimmer adjustable and analog controllable units | ||||||||
Type Trimmer adj (Refer curves above) | Type Analog control | Input voltage *) | Nominal output voltage | Voltage setting range | Max output current | Current limit setting | Max power | Mechanics (w x h x d) |
ADC7181R/24 | ADC7181R/24AI | 55-264VAC / 78-340VDC | 24 VDC | 0-36VDC | 30 A | 0-30A | 800W | 14TE / 3U / 230mm |
ADC7181R/36 | ADC7181R/36AI | 55-264VAC / 78-340VDC | 36 VDC | 0-54VDC | 20 A | 0-20A | 800W | 14TE / 3U / 230mm |
ADC7181R/48 | ADC7181R/48AI | 55-264VAC / 78-340VDC | 48 VDC | 0-72VDC | 15 A | 0-15A | 800W | 14TE / 3U / 230mm |
ADC7181R/72 | ADC7181R/72AI | 55-264VAC / 78-340VDC | 72 VDC | 0-108VDC | 10 A | 0-10A | 800W | 14TE / 3U / 230mm |
ADC7181R/96 | ADC7181R/96AI | 55-264VAC / 78-340VDC | 96 VDC | 0-144VDC | 7.5A | 0-7.5A | 800W | 14TE / 3U / 230mm |
ADC7180R/24 | ADC7180R/24AI | 55-264VAC / 78-340VDC | 24 VDC | 0-36VDC | 30 A | 0-30A | 800W | 17TE / 3U / 230mm |
ADC7180R/36 | ADC7180R/36AI | 55-264VAC / 78-340VDC | 36 VDC | 0-54VDC | 20 A | 0-20A | 800W | 17TE / 3U / 230mm |
ADC7180R/48 | ADC7180R/48AI | 55-264VAC / 78-340VDC | 48 VDC | 0-72VDC | 15 A | 0-15A | 800W | 17TE / 3U / 230mm |
ADC7180R/72 | ADC7180R/72AI | 55-264VAC / 78-340VDC | 72 VDC | 0-108VDC | 10 A | 0-10A | 800W | 17TE / 3U / 230mm |
ADC7180R/96 | ADC7180R/96AI | 55-264VAC / 78-340VDC | 96 VDC | 0-144VDC | 7.5A | 0-7.5A | 800W | 17TE / 3U / 230mm |
*) Reduced power 55…200VAC or 78…200VDC, see curves at next page, max power 600W with DC input
